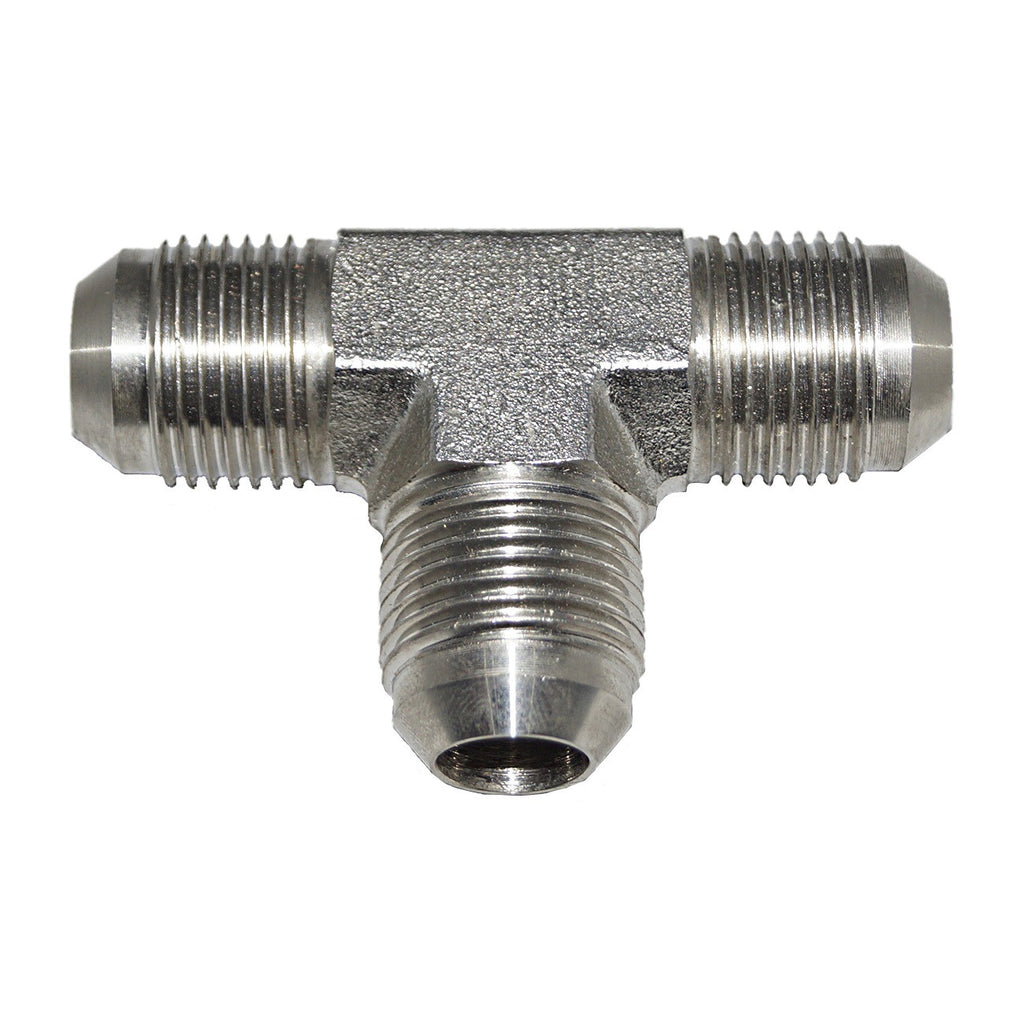

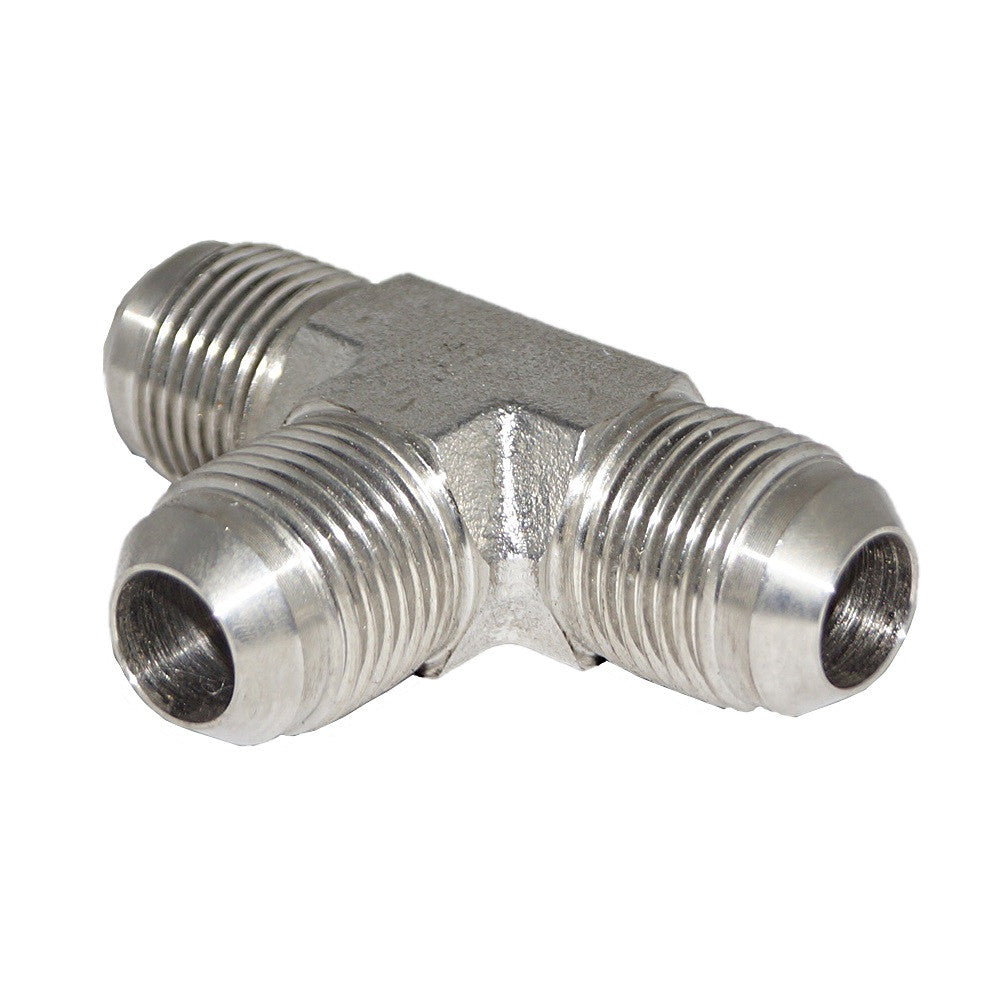

Union Tee are 37 degree flare fittings made to SAE J514/ISO 8432-2 standards. These fittings are well know for its 37 degree flare on the seating surface. They are suitable for hydraulic applications and industrial applications.
Standards:
Sizing:
Presure Range
Tube OD (Metric) |
Tube OD (Inch) |
SAE J514,PSIG 1) |
SAE J514,PSIG 2) |
SAE J514,PSIG 3) |
6 | 1/4 | 5000 | 5000 | 4500 |
8 | 5/16 | 5000 | 5000 | 4000 |
10 | 3/8 | 5000 | 4000 | 4000 |
12 | 1/2 | 4500 | 3000 | 4000 |
16 | 5/8 | 3500 | 3000 | 3000 |
20 | 3/4 | 3500 | 2500 | 3000 |
25 | 1 | 3000 | 2000 | 2500 |
32 | 1 1/4 | 2500 | 1150 | 2000 |
38 | 1 1/2 | 2000 | 1000 | 1500 |
50 | 2 | 1500 | 1000 | 1125 |
1) Unions and Bulkheads
2) Fittings with pipe threads
3) Female Swivels
