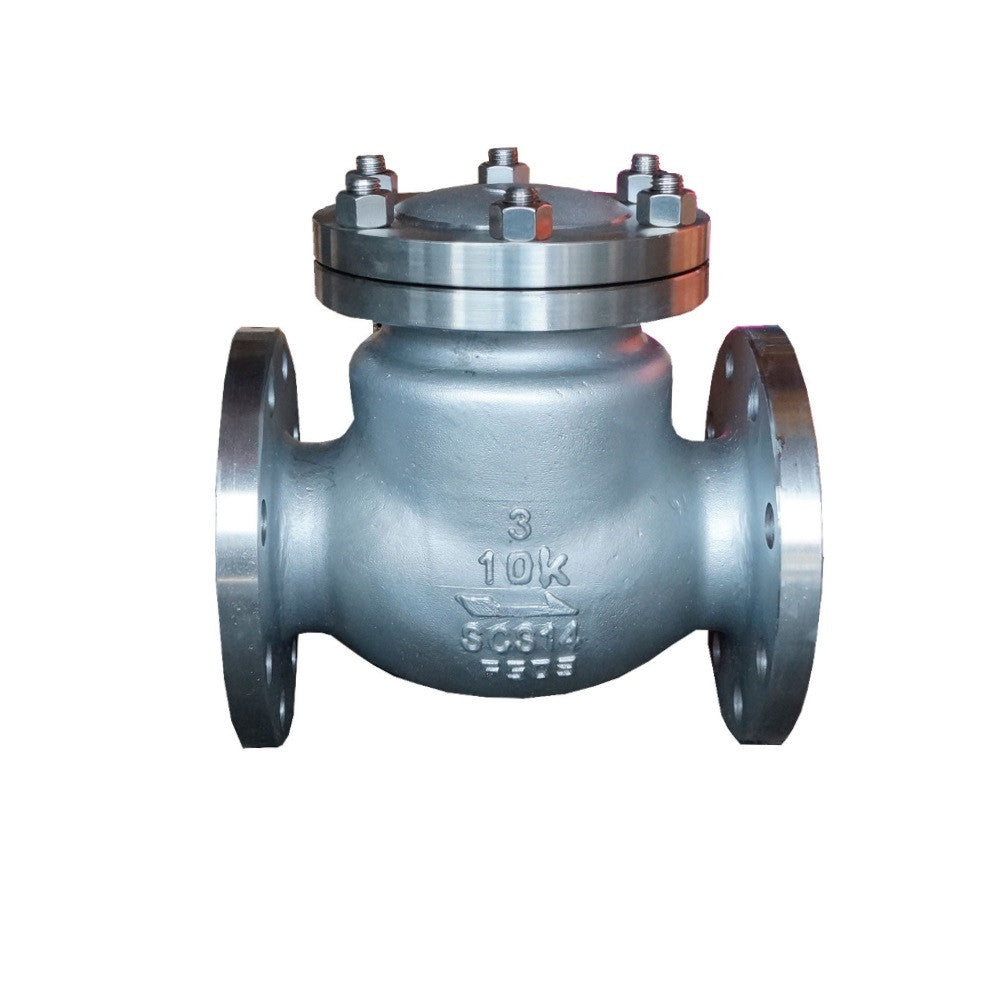

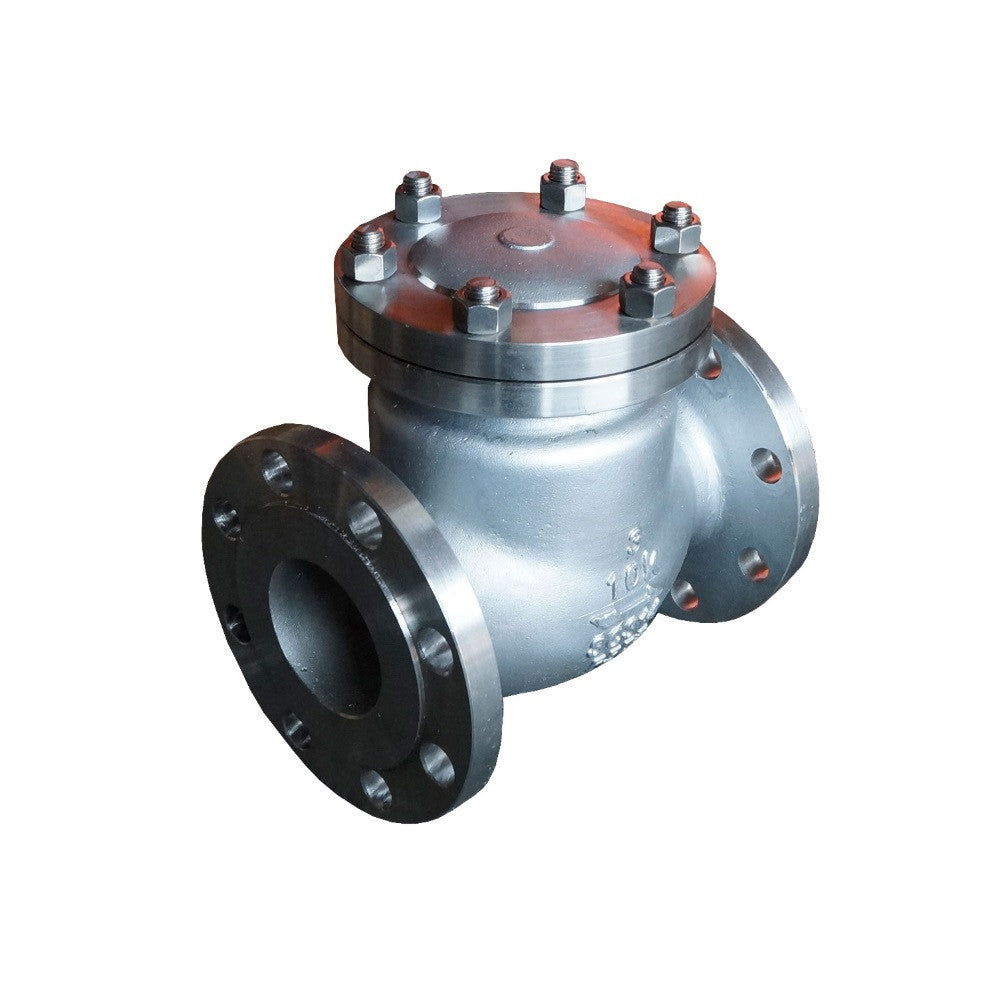

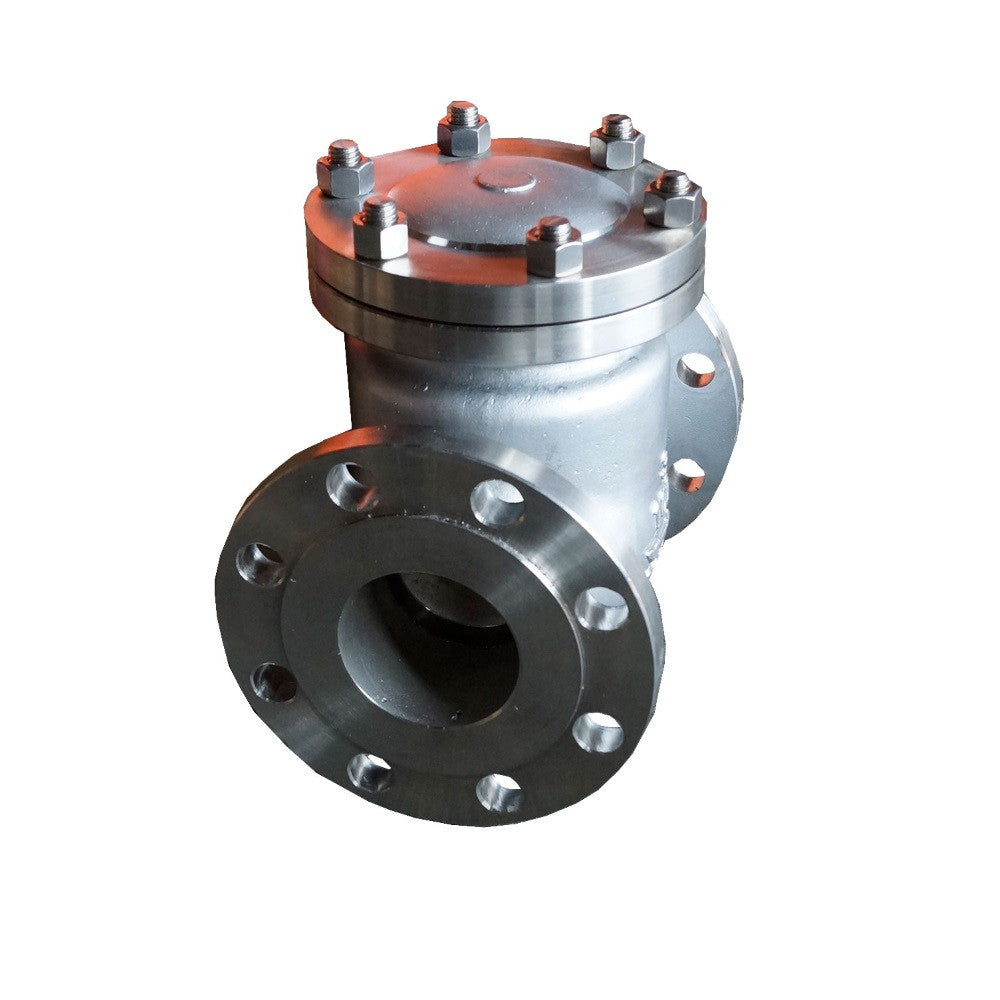

JIS10K Flanged End Swing Check Valves

Part Number: VL-C-S-SC-10K-64
Availability: 3 in stock

JIS 10K flanged end swing check valve is a one way flange check valve that allows fluids to flow in one direction only. When fluids flow from entering port, disc will be push up and fluids will pass through the check valve. It also prevent the back flow from hydraulic system.

JIS 10K flanged end swing check valve is design and manufacture according to JIS B2084. It is available in stainless steel 316 or cf8m material.


  • Design: Swing type / Flanged End
  • Size: 1/2" to 4" (DN15-100)
  • Working Pressure: 10kg/cm²
  • Material: SS316 / CF8M
  • Applicable Medium: General water, oil & gas applications
  • Temperature Range: -29°C to +150°C
  • Brand: Addison Fluids
