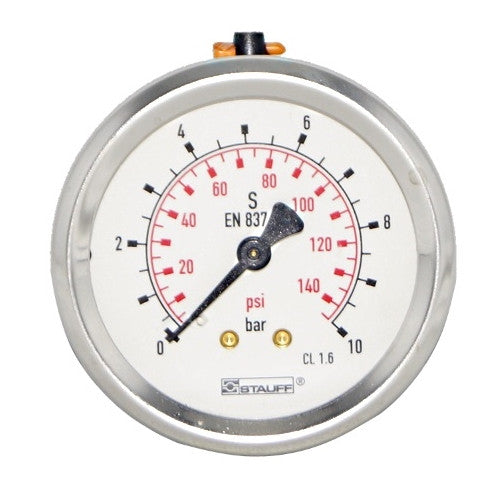

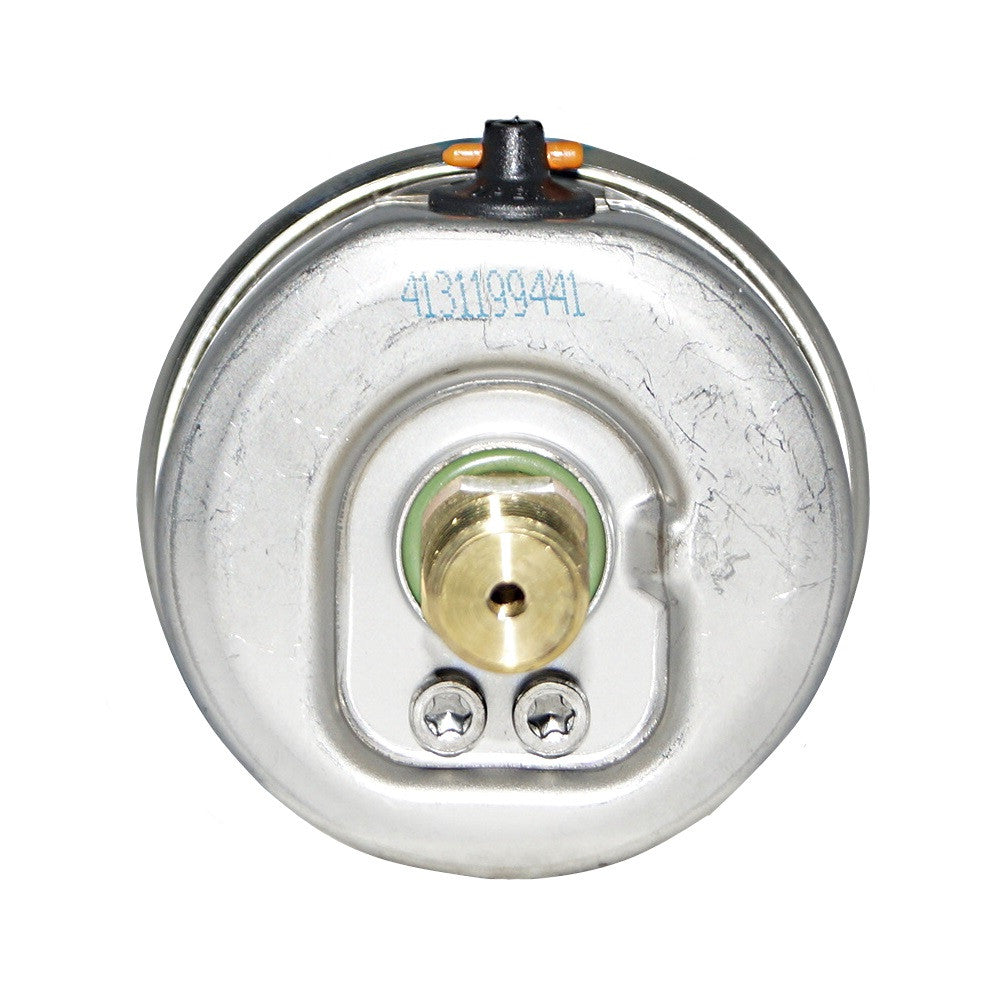

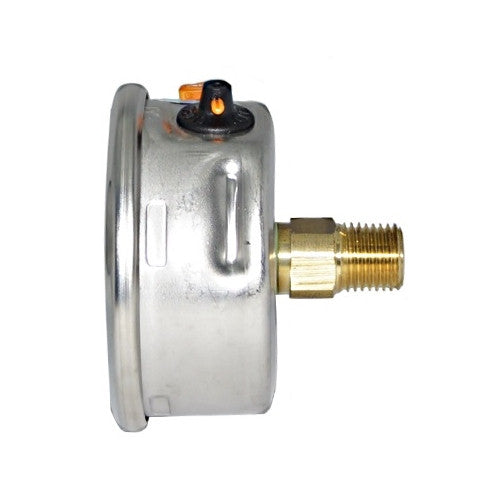

63mm or 2 1/2" Panel Mount Pressure Gauges with BSPP Connection are pressure measuring devices for hydraulic oil and gaseous media. Pressure gauges are available in different adaptions and port connections to suit different installations.

Design:

• EN 837-1

Dial Face Sizing:

• 2 1/2" (63MM Housing)

Material Specification:

• Housing: Stainless Steel
• Thread: Brass

Connections:

• BSPP

Pressure Range:

• Up to 700Bar

Style of Scales:

• Bar / Psi

Brand:

• Stauff / Germany

Catalogue Available for Download:

• 63MM Dial Face Panel Mount Pressure Gauge with BSPP Connection Catalogue.pdf
