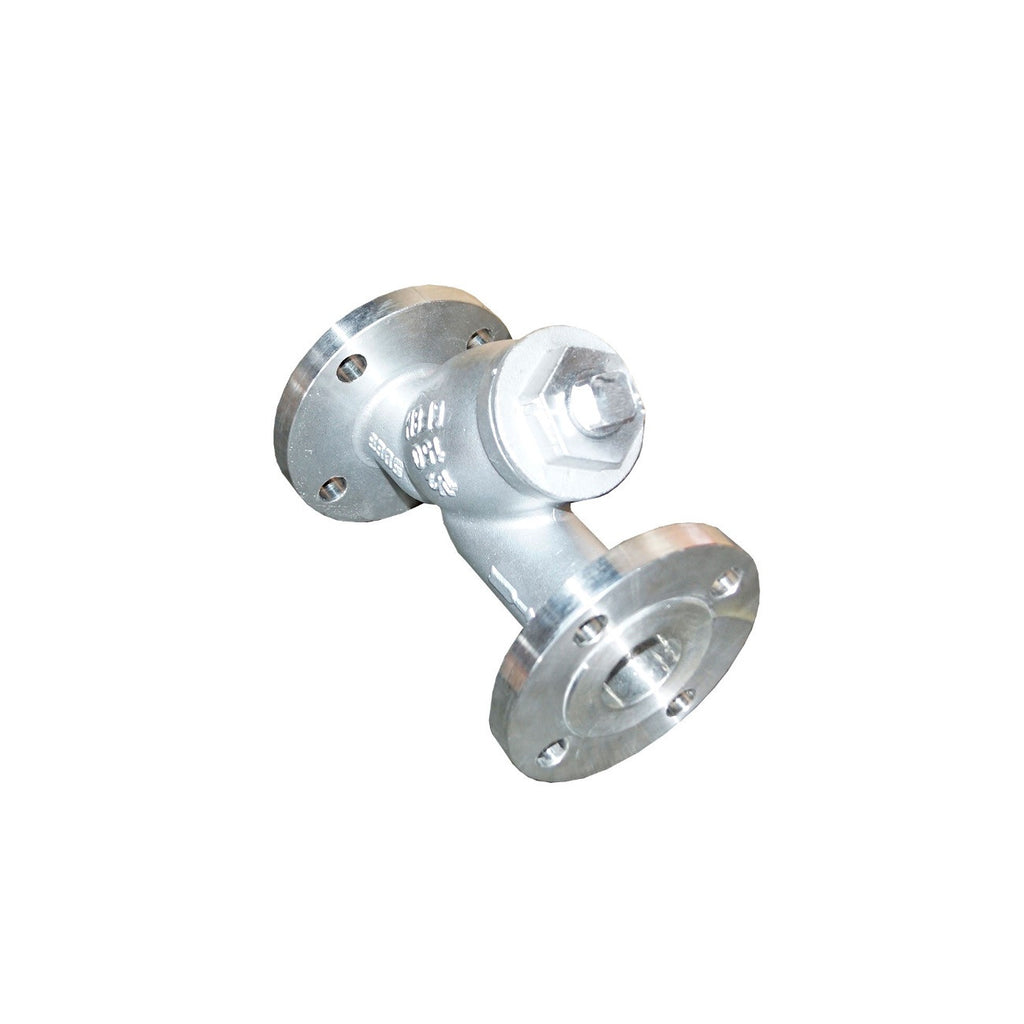

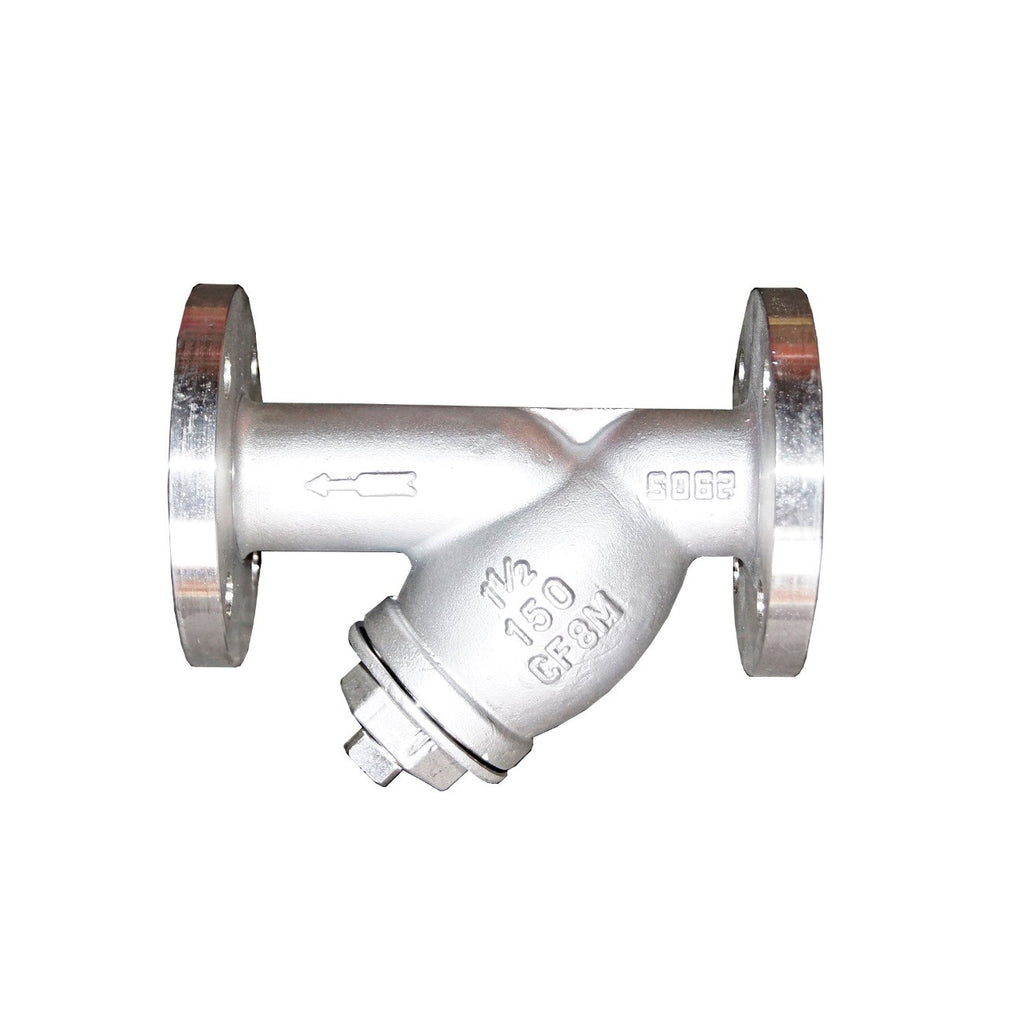

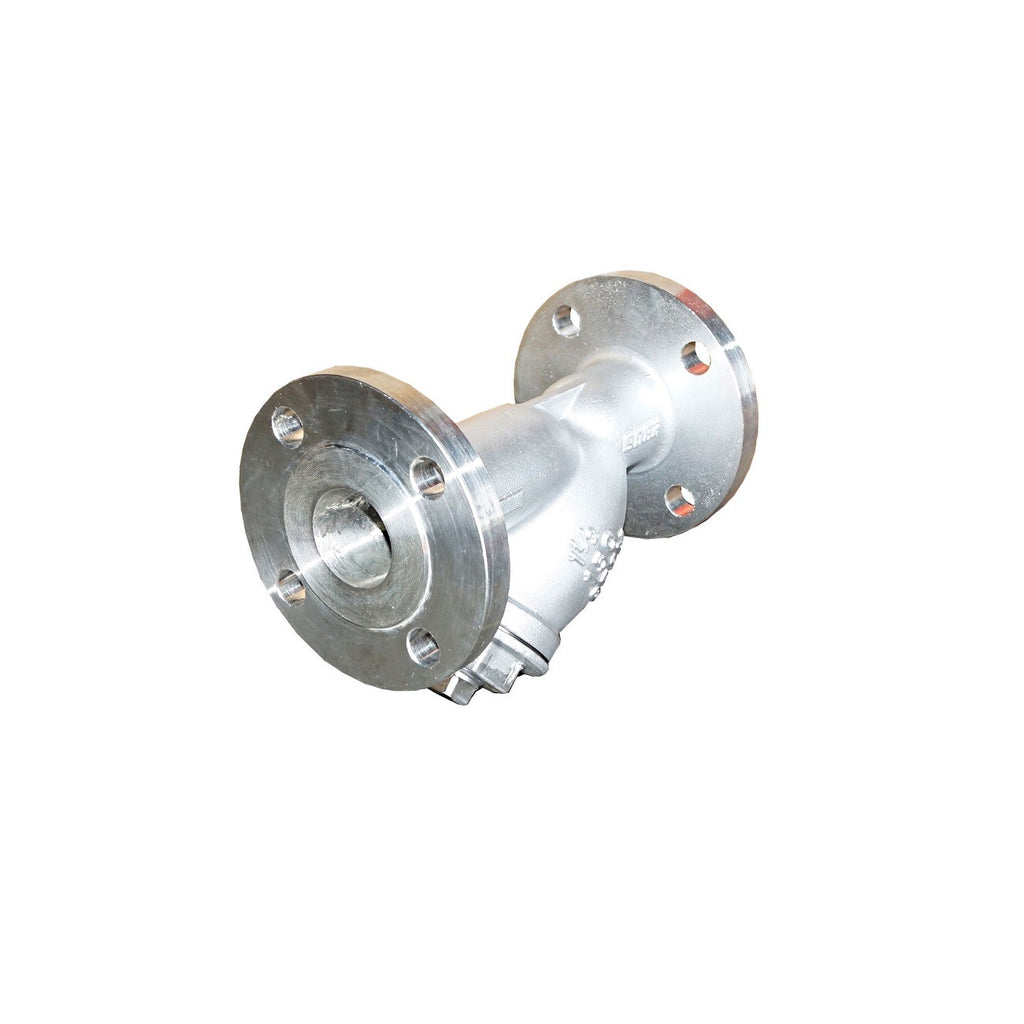

ANSI 150# Y-Strainers (Mesh Size 1.0MM)

Part Number: VL-YS-S-F-150-48
Availability: 10 in stock

ANSI 150# flanged end y-strainer is a flanged y-shaped filtration device that used to separate particles or solid impurities from fluids. It is to prevent the hydraulic systems from contamination.‘?

ANSI 150# flanged end y-strainer is available in stainless steel 316 and able withstand to 150 PSI working pressure. It is design and manufacture according to ANSI B16.34. The mesh size of the strainer screen is 40 (1.0MM).


  • Size: 1 1/2�æäóî¥Ë? �æäóîäóñ 4�æäóî¥Ë? (DN40-100)
  • Working Pressure:‘?150 PSI
  • Material: SS316 / CF8M
  • Mesh Size: 1.0MM
  • Applicable Medium: General water, oil & gas applications
  • Temperature Range: -20í?í?C to 230í?í?C
  • Brand: Addison Fluids
