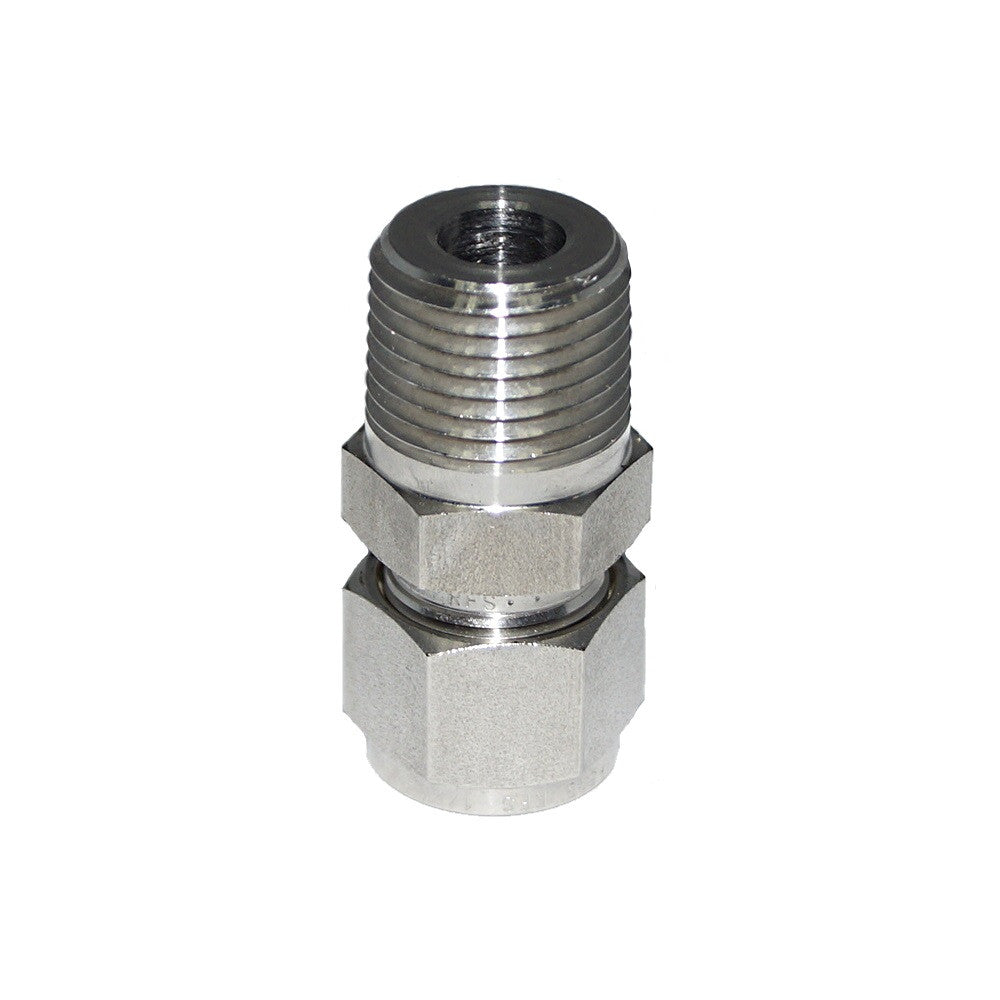

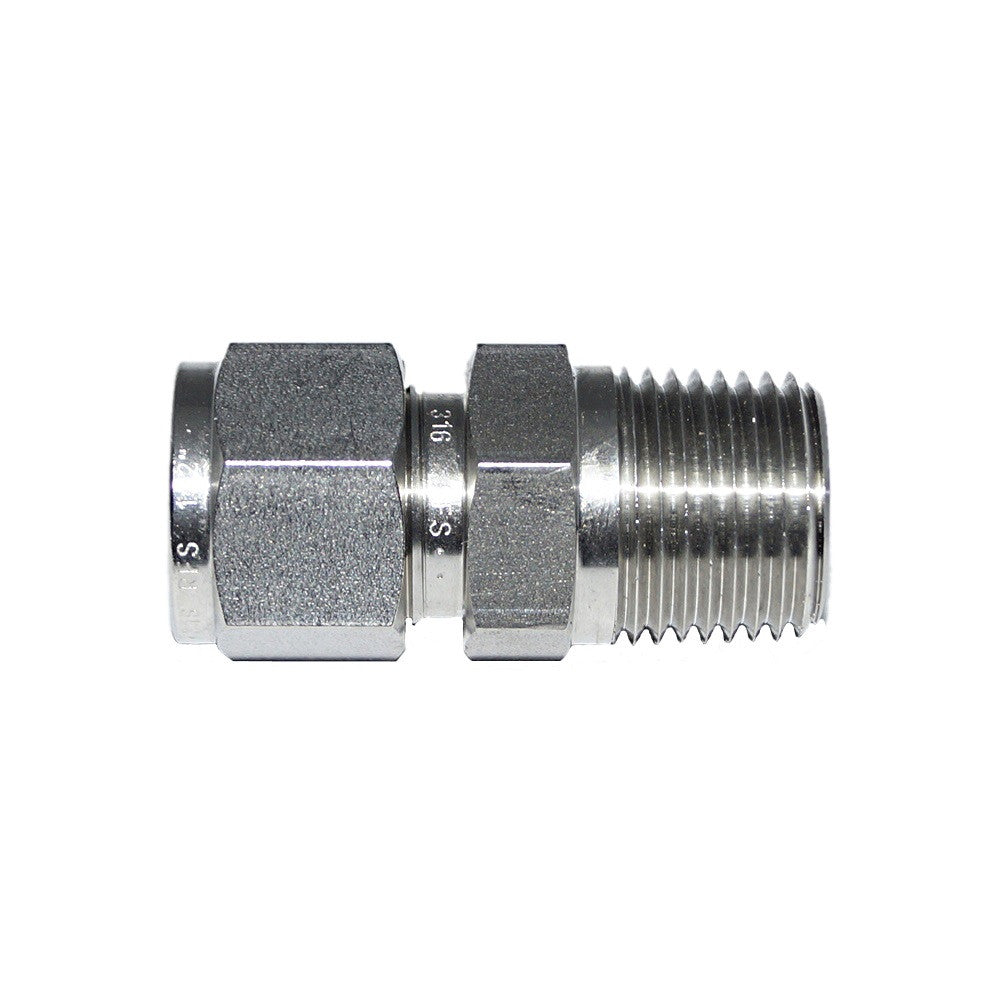

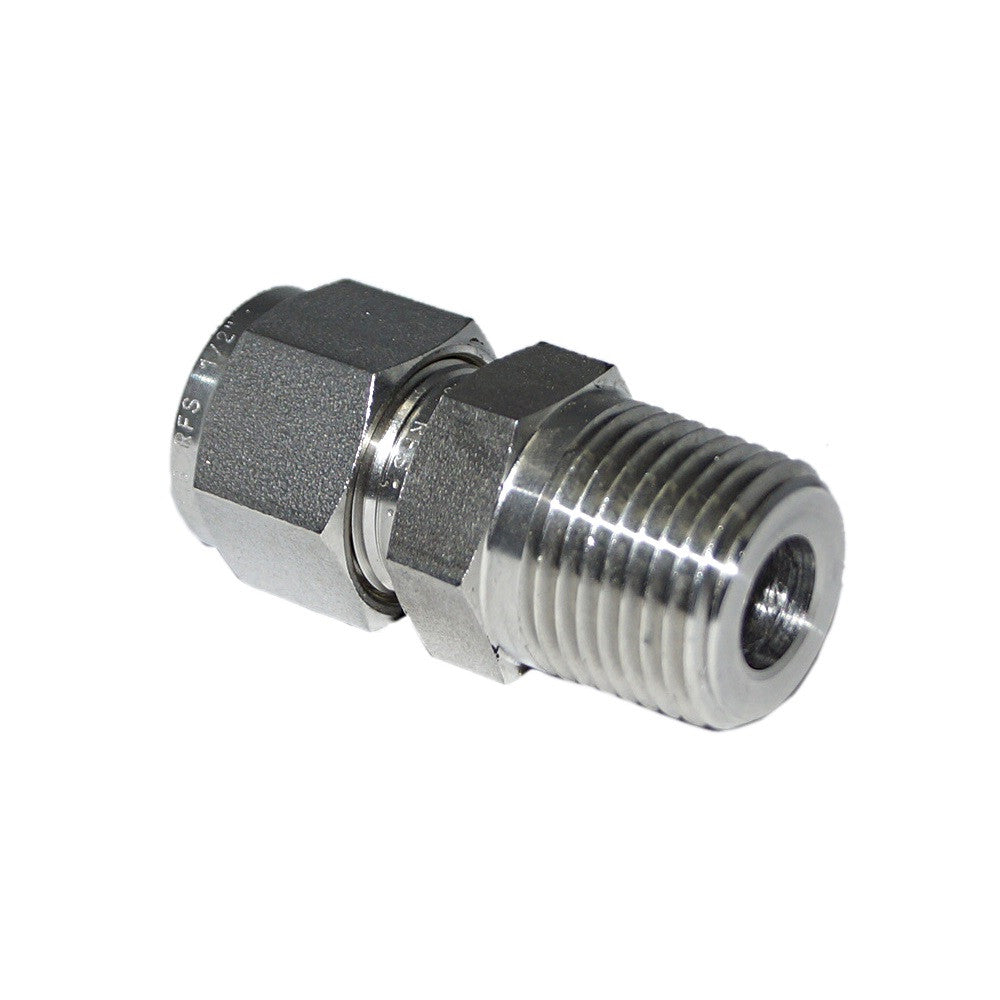

Tube x NPT Male Connector compression fittings are used for tube connections. These tube fittings are also called double ferrule fittings or instrumentation fittings. They are interchangeable with standard double ferrule fittings.

Standards:

• Double Ferrule Design

Sizing:

• Metric Size Range: 6 MM to 42 MM
• Inch Size Range: 1/4"OD to 2"OD

Pressure Ratings

• Tube fittings pressure rating are rated to the working pressure of tubing as listed in the tubing tables

Allowable Fittings Material Working Temperature:

• Stainless Steel: -60°C to +400°C (DIN 17440)
• Brass -60°C to +175°C

Allowable Seals Material Working Temperature:

• NBR -35°C to +100°C
• FKM -25 °C to +200°C

Brand:

• RFS / Korea

Catalogue Available for Download:

• RFS Tube Fittings Catalogue.pdf
