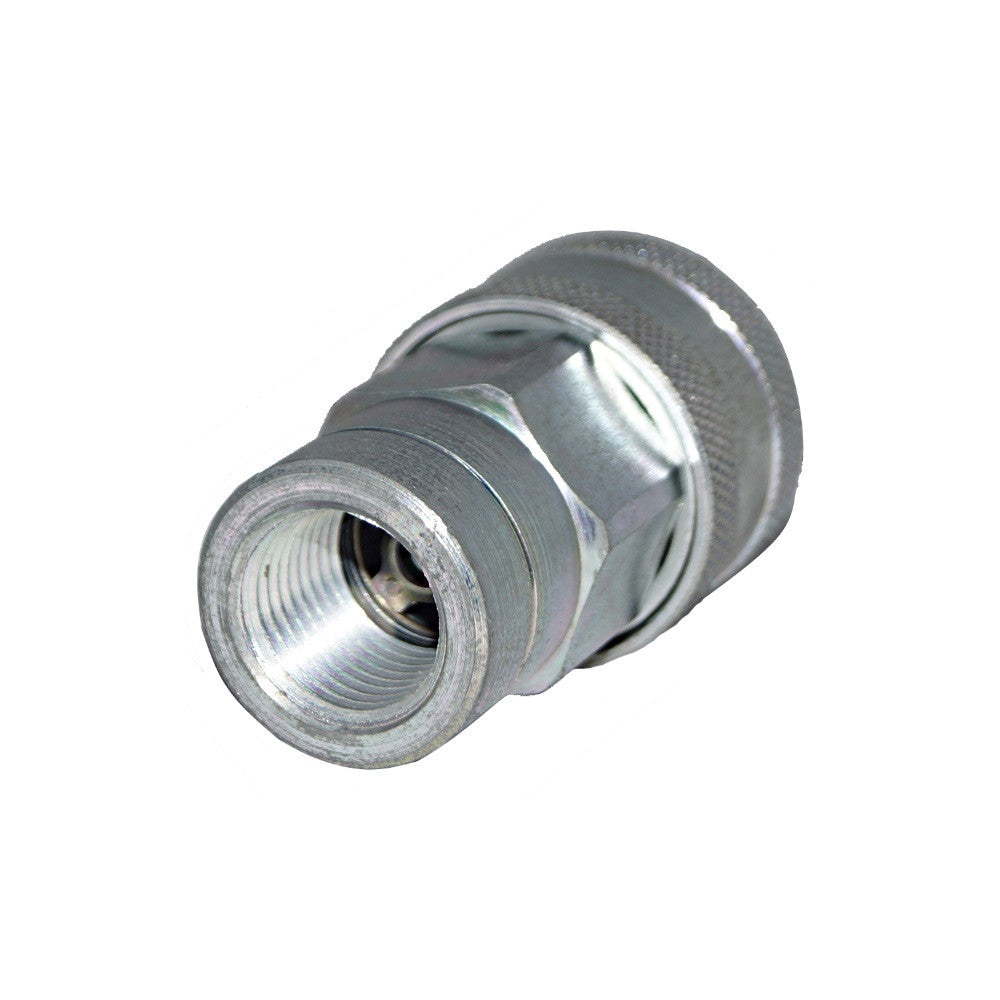

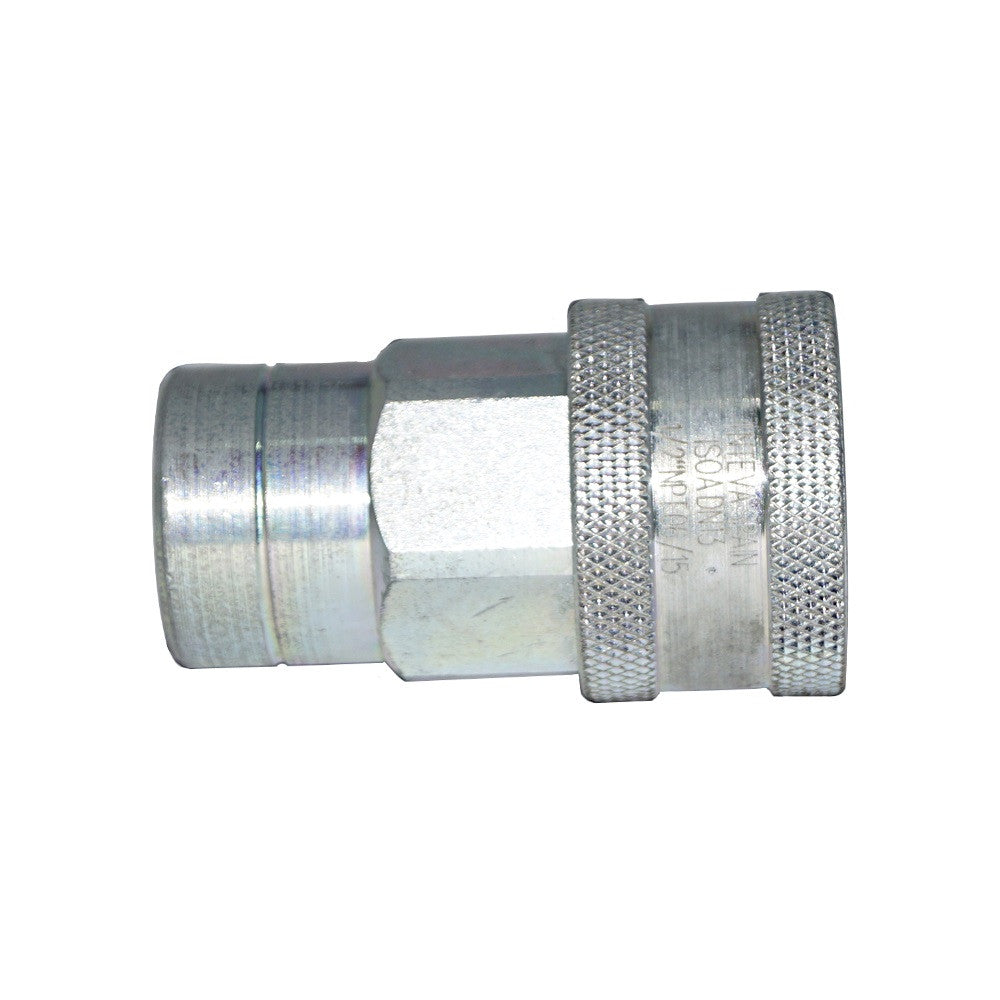

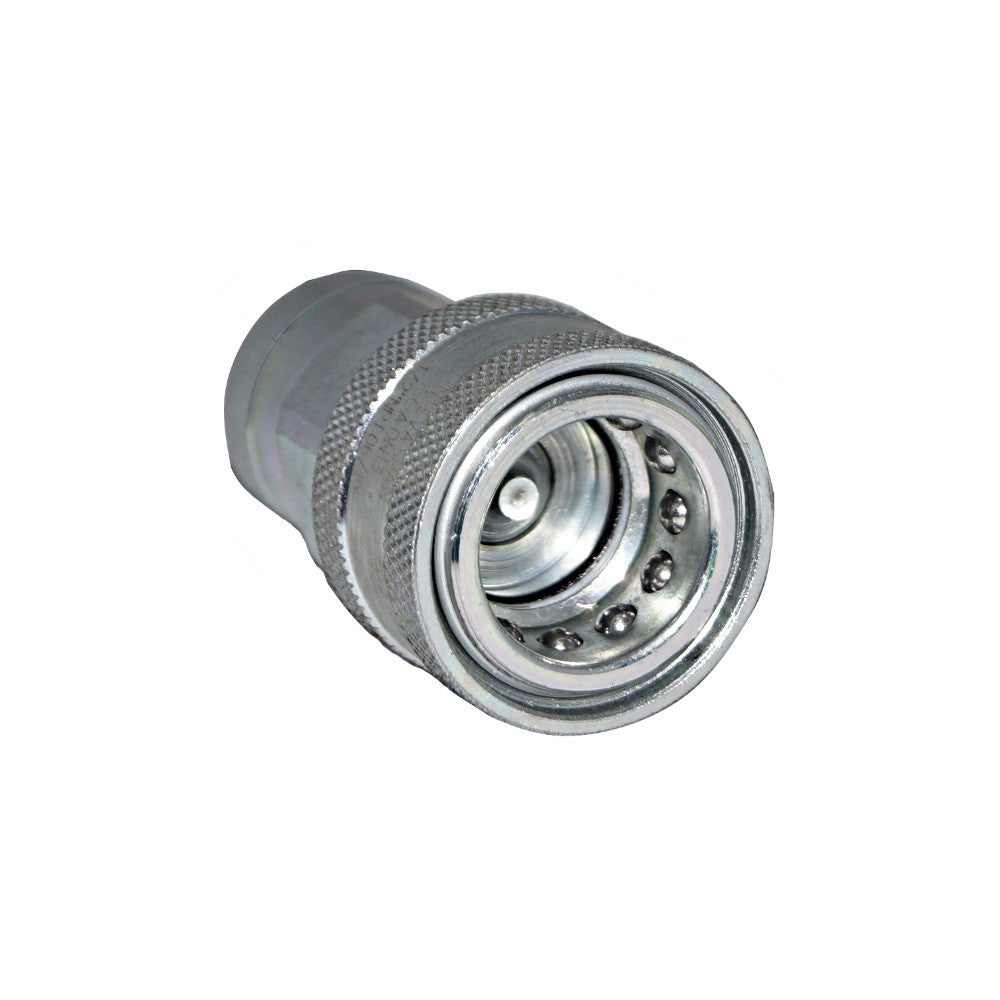

ISO A Sockets x Female BSPP are manufactured in accordance to ISO 7241-A standards and are of poppet valve closing system design. They are designed for oil hydraulic applications 97.23.EC.
Materials:
Body: Carbon Steel EN-10277-3
Back-Up-Ring: PTFE
Springs: Carbon Steel DIN 17233/84(B)
Seals:
NBR (For Steel Quick Connect Couplings)
Standard Models Pressure Rating:
1/4” 350 Bar
3/8” 300 Bar
1/2” 300 Bar
3/4" 250 Bar
1" 230 Bar
1 1/4" 230 Bar
1 1/2" 200 Bar
2" 130 Bar
Allowable Seals Material Working Temperature:
NBR -30 ℃ to +100 ℃
Equivalence
Faster ANV
Aeroquip FD56
Parker 6600
Snap-Tite 61
Brand:
Inteva / Spain
