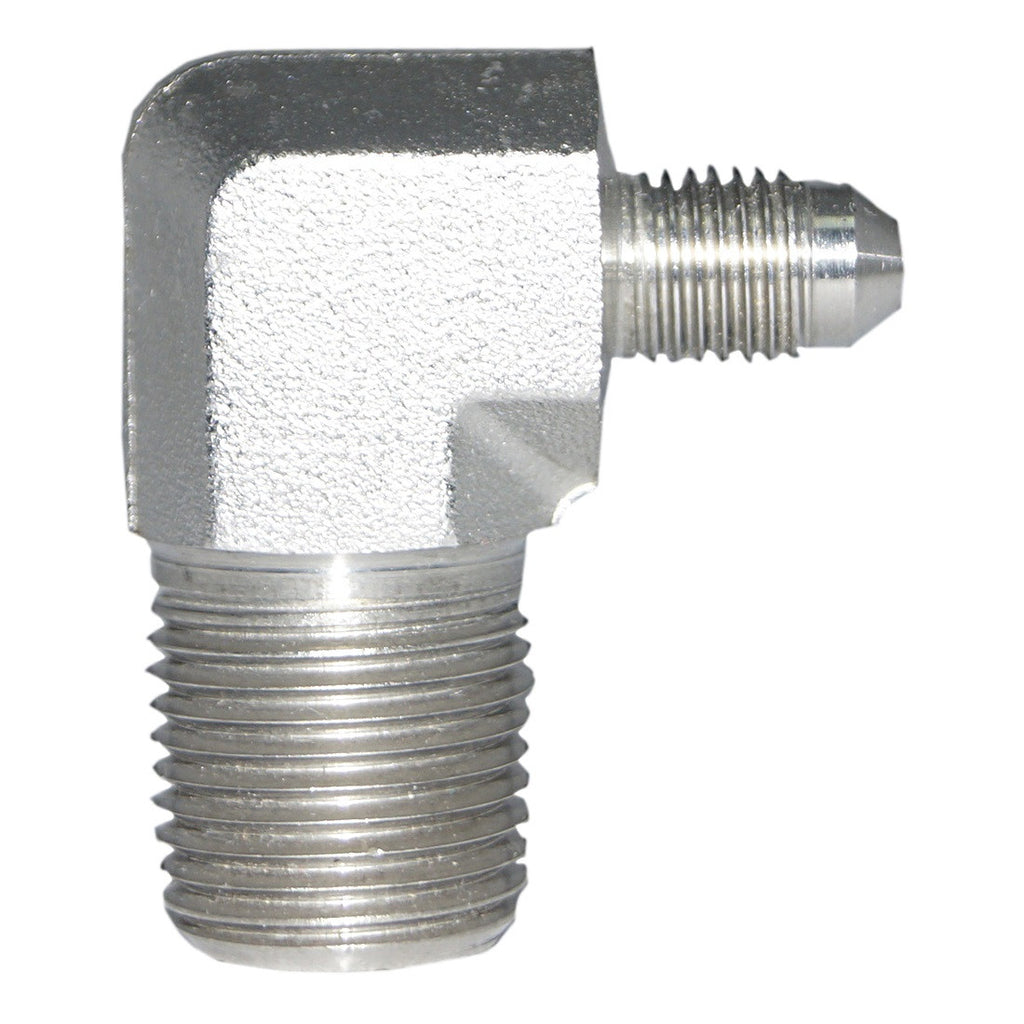

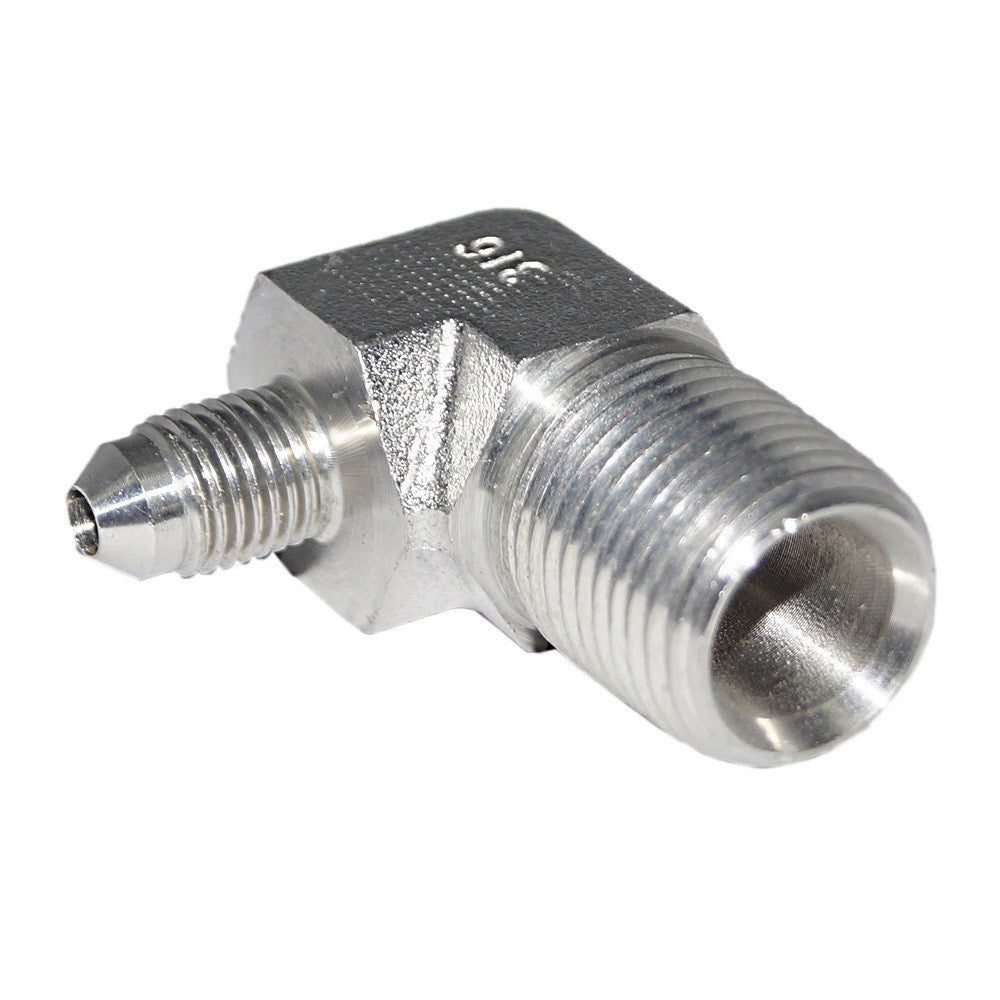

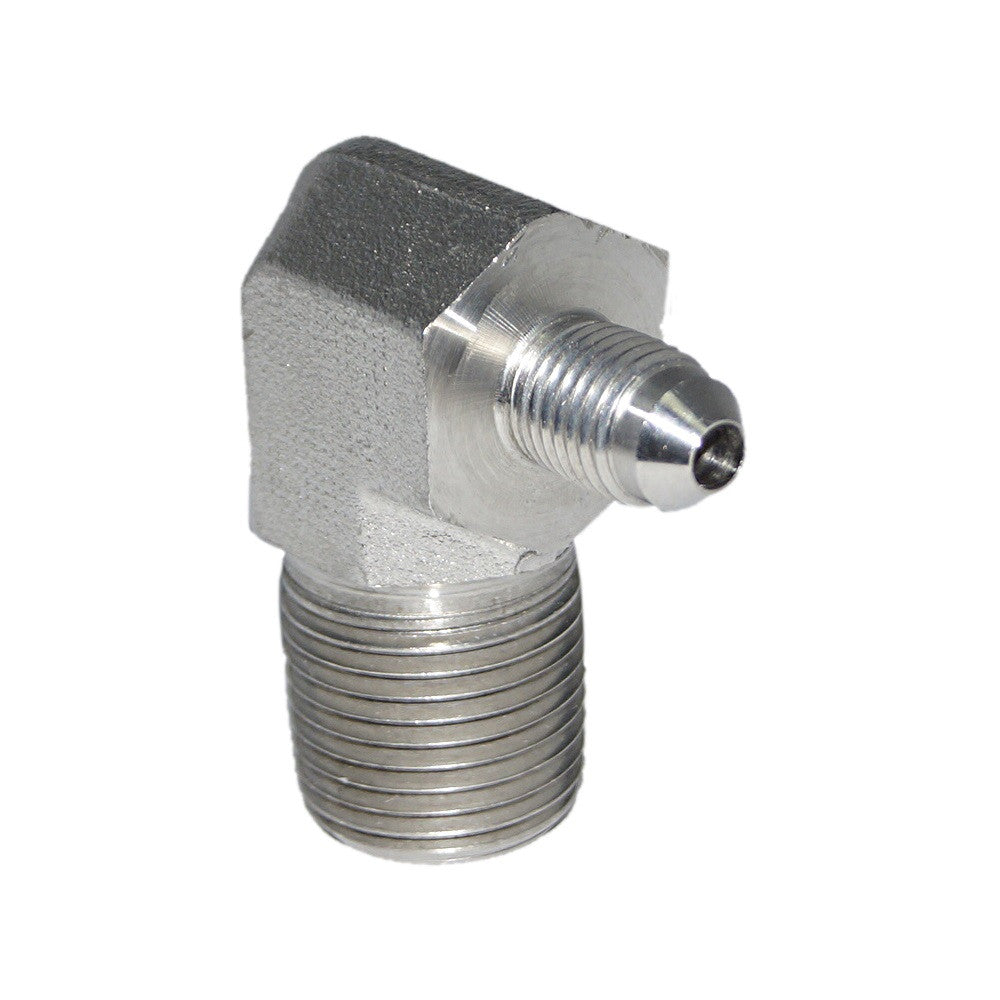

JIC x NPT Male Elbow, JIC Fitting

Part Number: F-J-S-L90M-N-06-06
Availability: 192 in stock
$17.00
QTY:

JIC x NPT Male Elbow are 37 degree flare fittings made to SAE J514/ISO 8432-2 standards. These fittings are well know for its 37 degree flare on the seating surface. They are suitable for hydraulic applications and industrial applications.

Standards:

  • SAE J514 / ISO 8434-2

Sizing:

  • 1/4" to 2"

Presure Range

Tube OD
(Metric)
Tube OD
(Inch)
SAE J514,PSIG
1)
SAE J514,PSIG
2)
SAE J514,PSIG
3)
6 1/4 5000 5000 4500
8 5/16 5000 5000 4000
10 3/8 5000 4000 4000
12 1/2 4500 3000 4000
16 5/8 3500 3000 3000
20 3/4 3500 2500 3000
25 1 3000 2000 2500
32 1 1/4 2500 1150 2000
38 1 1/2 2000 1000 1500
50 2 1500 1000 1125

1) Unions and Bulkheads
2) Fittings with pipe threads
3) Female Swivels

Brand:

  • RFS / China
